For Sale

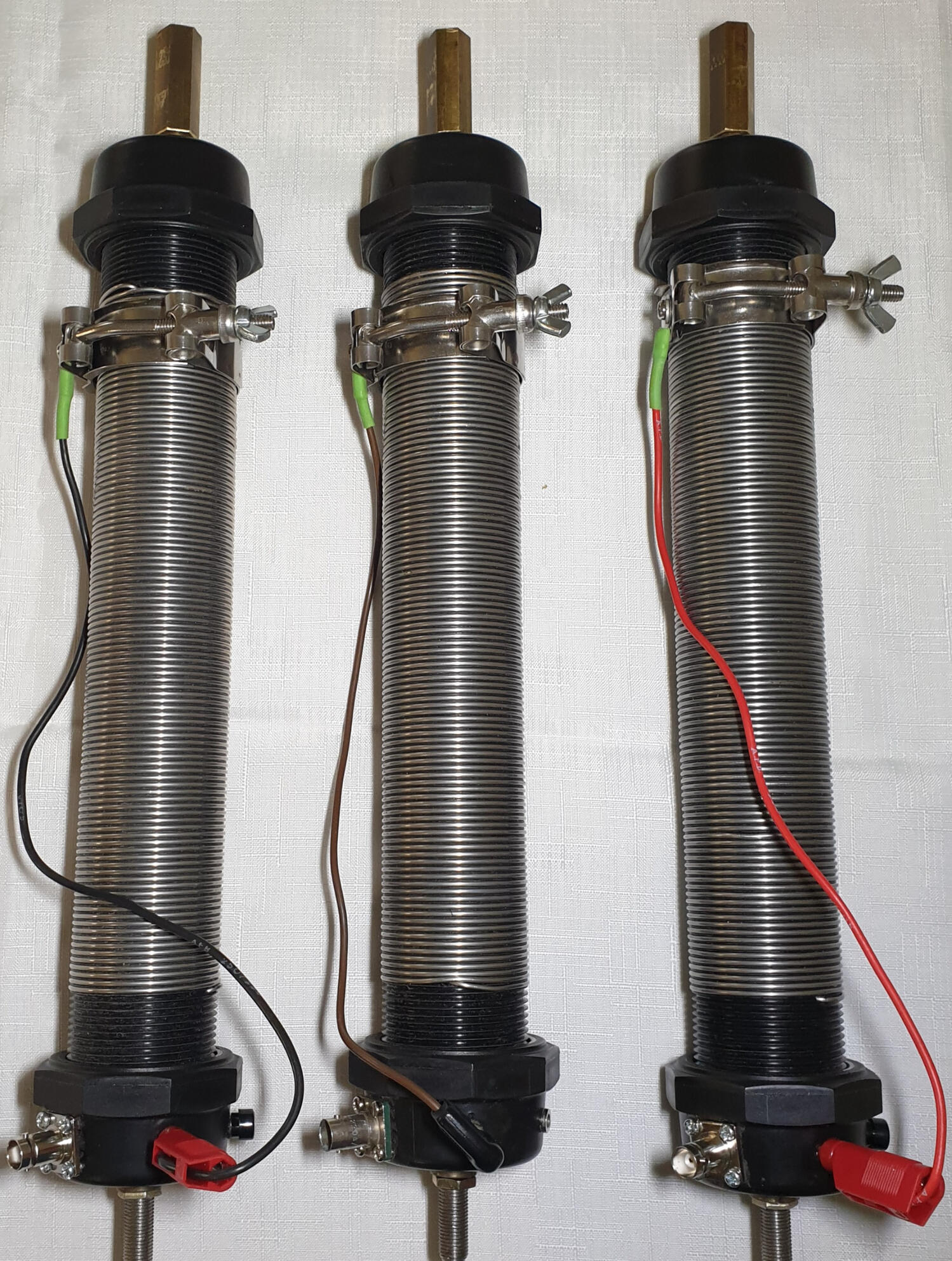

Multi Band HF Vertical Antenna Loading Coils
Most affordable Multiband Loading Coils on the market!Australian made brand new, unused

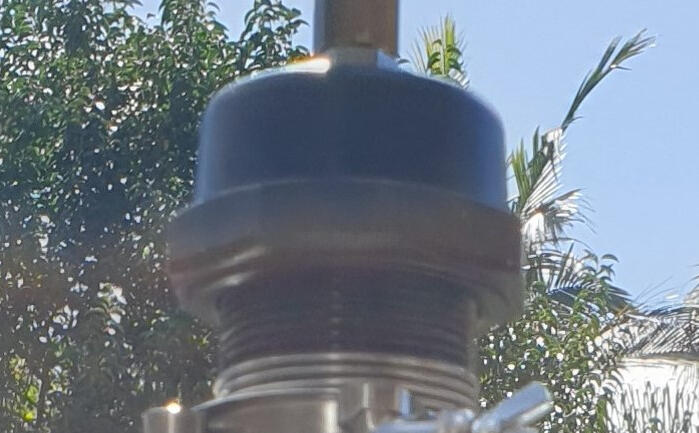

Made from robust ABS and 304 Stainless Steel which makes the unit waterproof.
Standard thread 3/8 inch 24 threads per inch. Top and bottom.
Foreign equivalents are in excess of $500 because of exchange rates and freight costs.Why wait 30 days?Were $250 now only $200 and $19.95 postage any where in Australia. Outside of Australia-contact me for postage price.
Technical Specifications
Power rated to 200 Watts SSB and 100 Watts CW
Dimensions- Diameter is 40mm x 420 mm in length, perfect for portable operation weighing in at only 600grams.
To purchase email me @
[email protected]
ADVANTAGES
Incredibly lightweight, was designed to participate in Parks on the Air, and Summits on the air.
Low angle of radiation for precise communications into DX stations.Range of applications Stationary mobile, Home based, Brilliant stealth, confined spaces like townhouse or unit blocks.

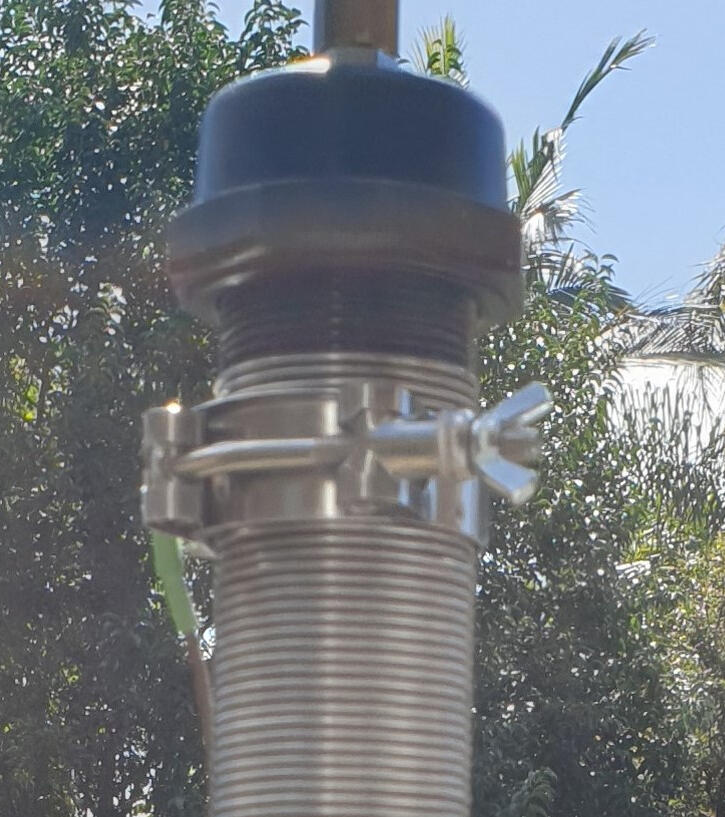

Corrosion free, never worry about the elements destroying the coil. Arcing is a thing of the past with stainless -steel tuning slider.
These points alone mean the unit is maintenance free.Simply add a whip of your choice and stand.Tunes 1:1 from 160m to 6meters.

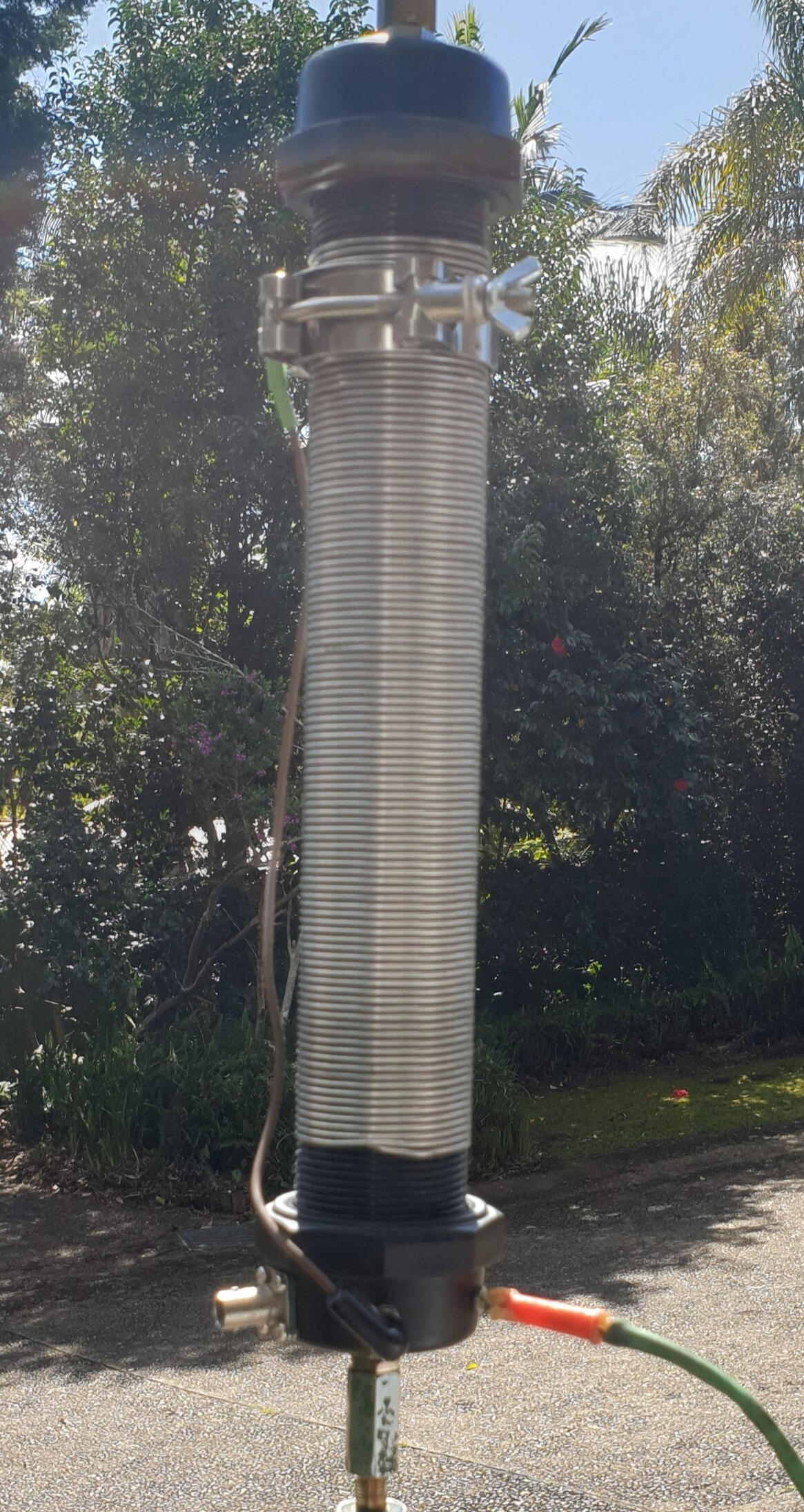

Multi Band Vertical Antenna Loading coils
HOW TO TUNE

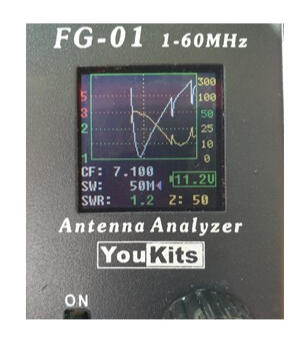

Using an Antenna Analyser or Nano VNA, you slide the band to achieve the highest received noise level and bring to precise resonance by fine adjustments of the slider.

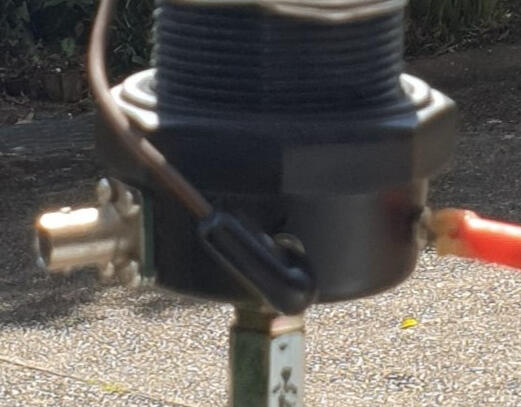

Utilising 4 lengths of 6-meter long wire (counterpoise), the lowest voltage standing wave ratio (VSWR) can be achieved. Operators will need to solder the four lengths of wire into a Banana plug then plug into the provided socket in the base of the loading coil.
